Product Description

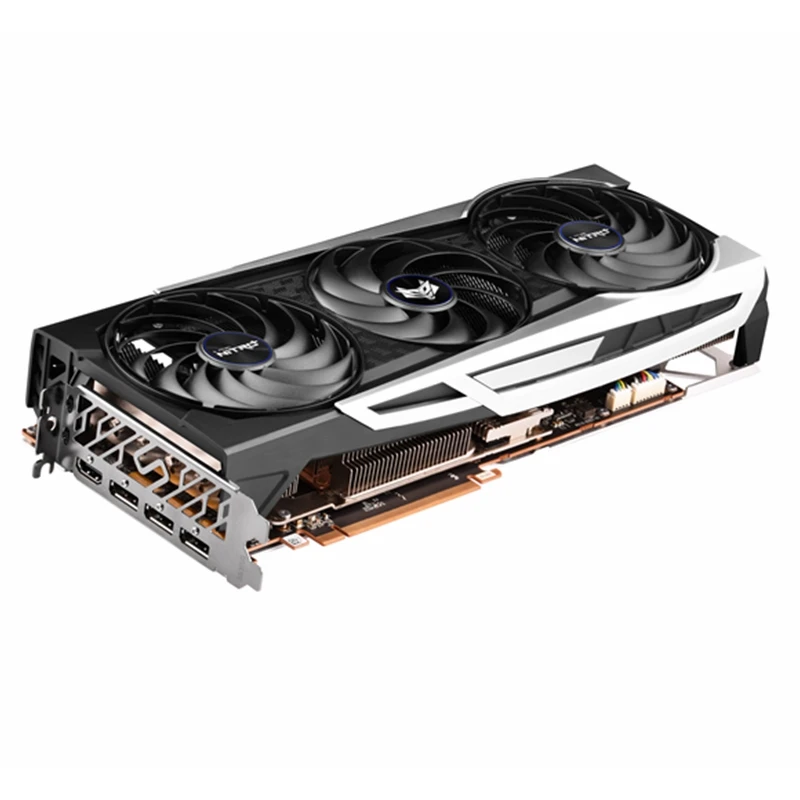

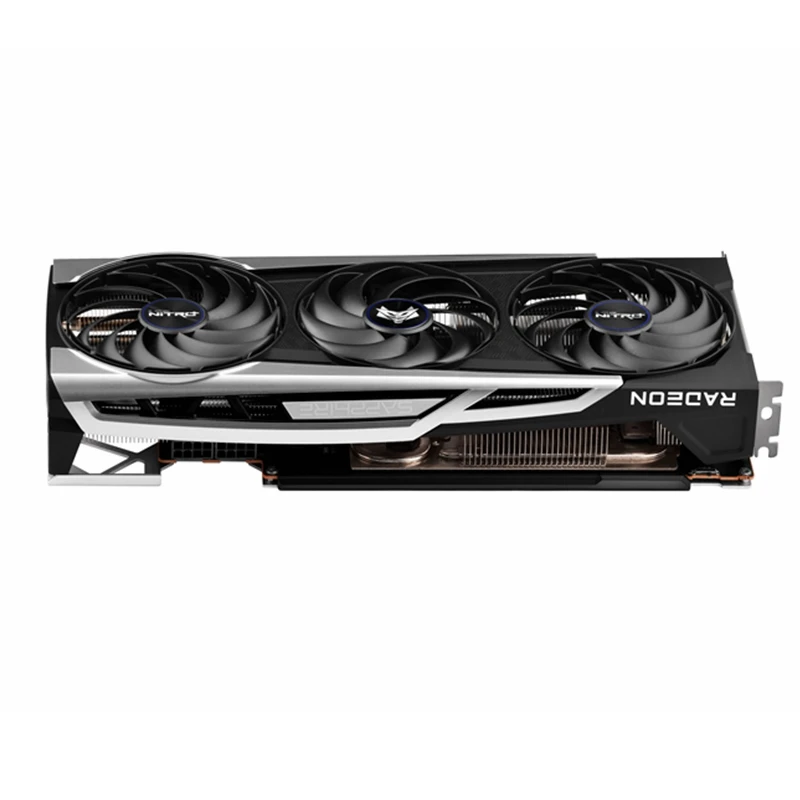

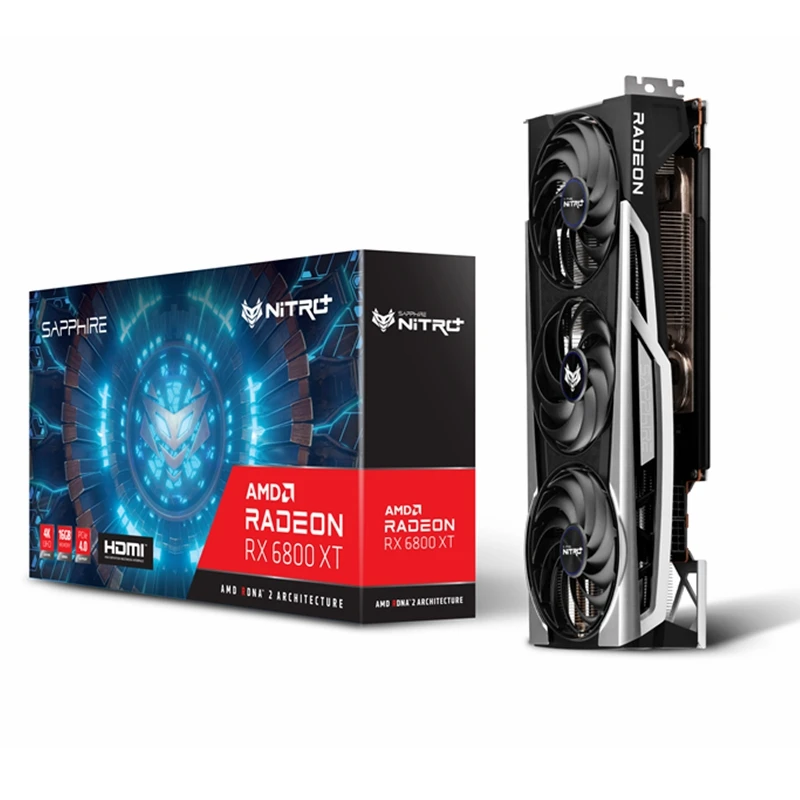

SAPPHIRE NITRO+ AMD Radeon RX 6800 XT Graphics Card 16GB/256 bit DDR6 Video Card GPU Triple Fans Cooling
Features
* Manufacturer: Sapphire
* Model Number: RX-6800XT Nitro+
* Product Name: AMD Radeon™ RX 6800XT
* Product Description: SAPPHIRE Nitro AMD Radeon™ RX 6800XT Graphics Card Triple Fans Cooling
* Manufacturer: Sapphire
* Model Number: RX-6800XT Nitro+
* Product Name: AMD Radeon™ RX 6800XT
* Product Description: SAPPHIRE Nitro AMD Radeon™ RX 6800XT Graphics Card Triple Fans Cooling
THE ULTIMATE GAME CHANGER
Powerhouse Performance for 4K Gaming
SAPPHIRE NITRO+ AMD Radeon™ RX 6800 XT
The NITRO+ AMD Radeon™ RX 6800 XT delivers powerhouse 4K gaming performance with vivid visuals for an elevated experience. The all-new innovative Wave Fin Design working in tandem with our V-Shape Fin Design for GPU Cooling reduces wind friction and centralizes airflow for optimal heat dissipation and a virtually silent system.
Explore all the incredible features that come with the SAPPHIRE NITRO+ AMD Radeon™ RX 6800 XT Graphic Card. We've split our
features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming
experience possible for you.
features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming
experience possible for you.
Switch from performance mode to silent mode or back using our TriXX software for a quick and easy switch between your dual BIOS
modes.
modes.
SAPPHIRE NITRO+ Graphics Cards
The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.
The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.
The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.
Specification
|
GPU
|
AMD Radeon™ RX 6800 XT Graphics Card
7nm GPU AMD RDNA™ 2 Architecture |
|
|
Engine Clock
|
|
|
|
* Boost Clock: Up to 2360 MHz
* Game Clock: Up to 2110 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
||
|
Stream Processors
|
4608
|
|
|
Infinity Cache
|
128MB
|
|
|
Ray Accelerators
|
72
|
|
|
Memory Size/Bus
|
16GB GDDR6
|
|
|
Memory Clock
|
16 Gbps Effective
|
|
|
Displays
|
Maximum 4 Displays
|
|
|
Resolution
|
* HD-MI™: 7680×4320
* DisplayPort1.4: 7680×4320 |
|
|
Interface
|
PCI-Express 4.0
|
|
|
Output
|
* 1x HD-MI
* 3x DisplayPort |
|
|
BIOS Support
|
Dual UEFI
|
|
|
Game Index
|
4K
|
|
|
Sapphire Features
|
AMD Features
|
|
|
* Dual BIOS
* Max Boost * TriXX Software Switch * Premium Digital Power Design * Fuse Protection * Tri-X Cooling Technology * Intelligent Fan Control * Precision Fan Control * Backplate with ARGB * Two-Ball Bearing Fans * Hybrid Fan Blade * Wave Fin Design * V Shape Fin Design for GPU Cooling * Integrated Cooling Module * K6.5 Memory Pad * TriXX Supported * Fan Check * Fan Quick Connect * TriXX Boost * NITRO Glow * External RGB LED MB Synchronization |
* AMD RDNA™ 2 Gaming Architecture
* DirectX® 12 Ultimate * Hardware Raytracing * 7nm GPU * GDDR6 Memory * PCI® Express 4.0 Support * AMD FreeSync™ Technology * DisplayPort™ 1.4 with DSC * HD-MI™ * Video Streaming up to 8K * Radeon™ VR Ready Premium * AMD FidelityFX * Radeon™ Image Sharpening * Radeon™ Anti-Lag * Radeon™ Software * Game Driver Optimizations * High Performance 4K Gaming |
|
|
Cooling
|
3 Fans
|
|
|
Form Factor
|
2.7 slot, ATX
Dimension: 310(L)X 134.3(W)X 55.3 (H)mm |
|
|
Power Consumption
|
350W
|
|
|
OS
|
Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing |
|
|
System Requirement
|
||
|
* Minimum 850 Watt Power Supply
* 2 x 8-pin Power Connector. * PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. * Minimum 8GB of system memory. 16GB recommended. |
310*126*42mm
|
|
