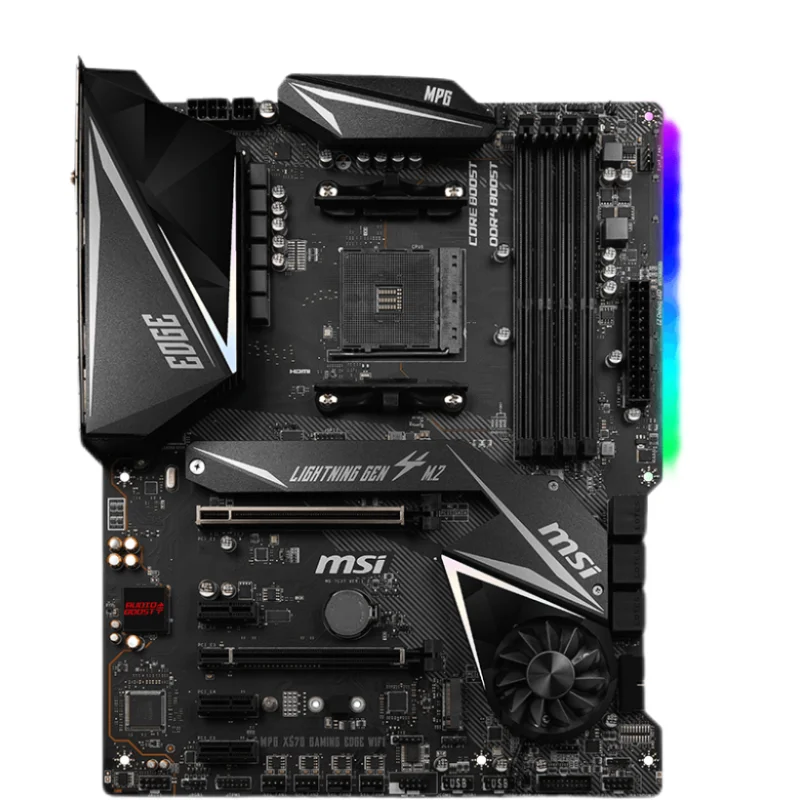

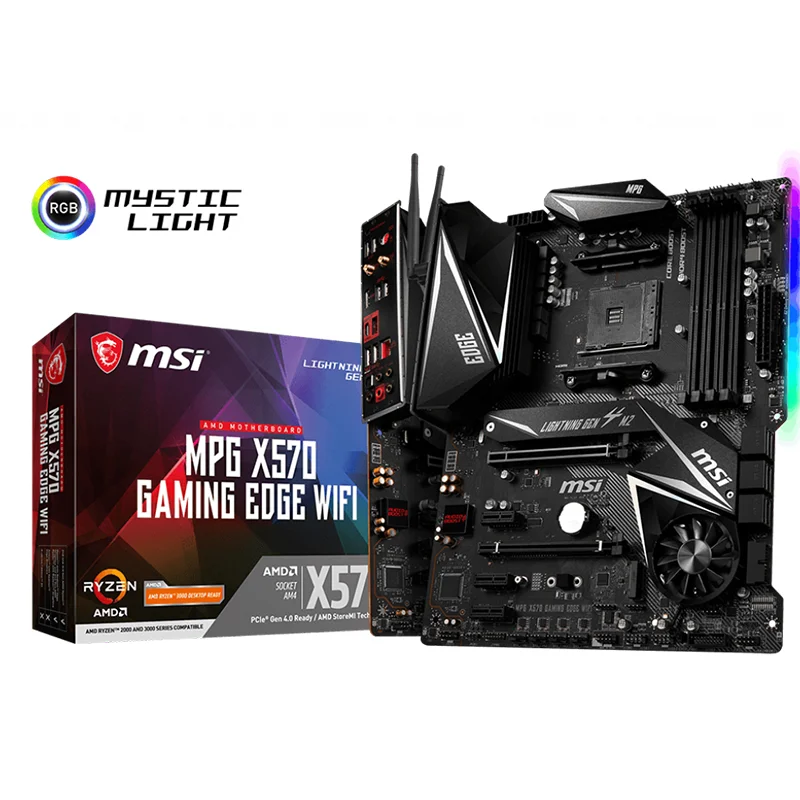

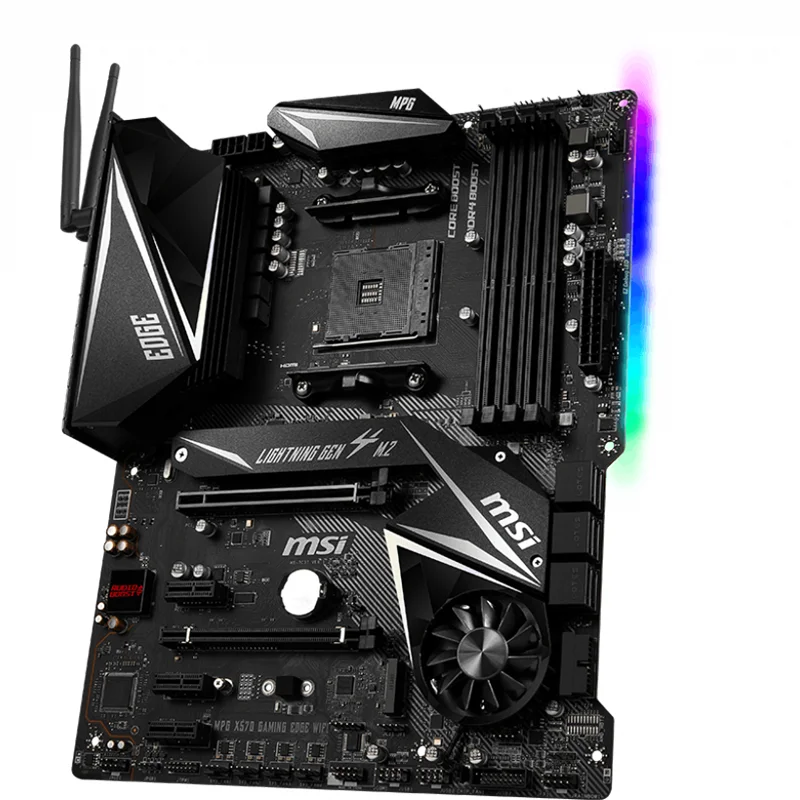

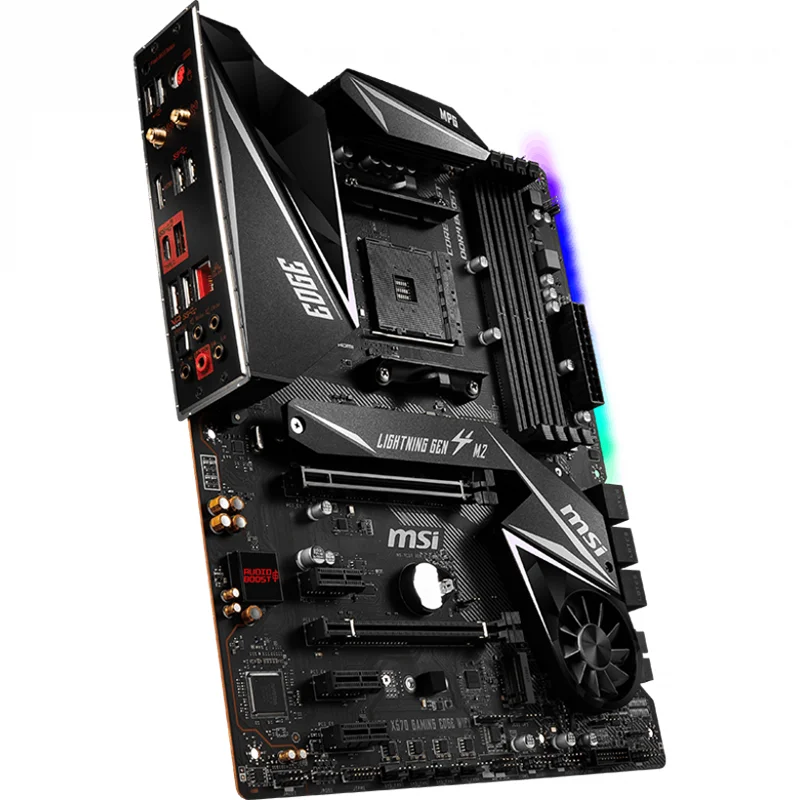

mother board
mother board
Regular price
$498.00 USD
Regular price
$0.00 USD
Sale price
$498.00 USD
Unit price
per
Couldn't load pickup availability
Product Description
|
Integrated chip
|
Sound card/network card
|
|
Main chipset
|
AMD X570
|
|
Chipset description
|
Using AMD X570 chipset
|
|
Display chip
|
CPU built-in display chip (requires CPU support)
|
|
Audio chip
|
Integrated Realtek ALC1220 8-channel audio chip
|
|
Network card chip
|
Onboard Realtek RTL8111H Gigabit LAN
|
|
CPU type
|
AMD Ryzen 5000/5000G/4000G/3000/3000G/2000/2000G series
|
|
CPU socket
|
Socket AM4
|
|
Memory type
|
4×DDR4 DIMM
|
|
Maximum memory capacity
|
128GB
|
|
Memory description
|
Support dual channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200/
3466/3600/3733/3866/4000/4133/4266/4400MHz memory
|
|
PCI-E standard
|
PCI-E 4.0
|
|
PCI-E slot
|
1×PCI-E X16 graphics slot, 3×PCI-E X1 slot, 1×PCI-E X4 slot
|
|
Storage interface
|
6×SATA III interface, 2×M.2 PCIe (Gen4x4)
|
|
USB interface
|
6×USB2.0 interface
|
|
Video interface
|
1×HDMI interface
|
|
Power connector
|
One 4-pin, one 8-pin, and one 24-pin power connector
|
|

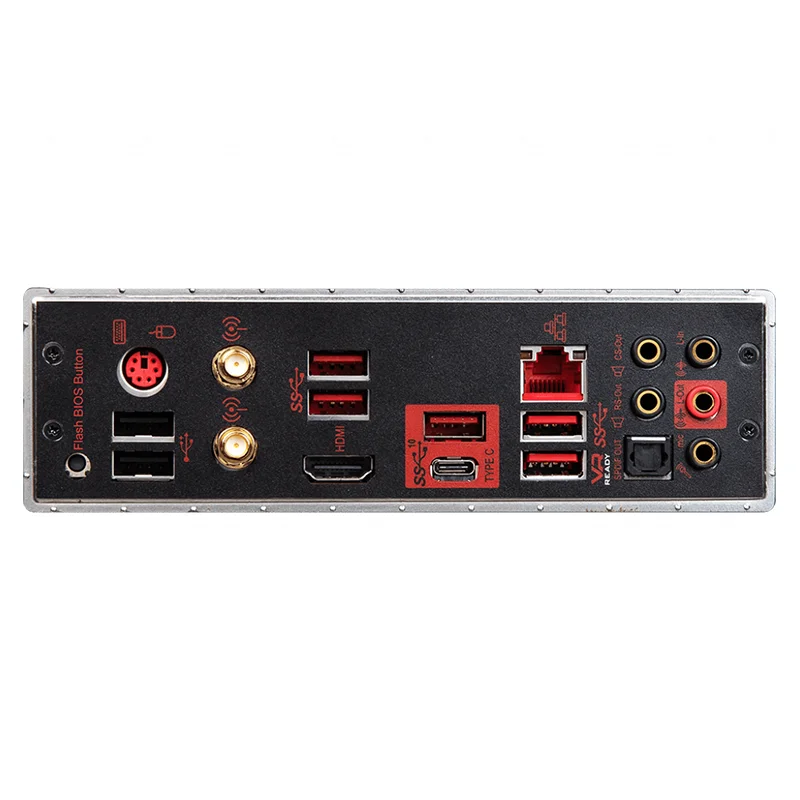

Other interfaces
|
1×RJ45 network interface, 5×audio interface
|
|
Motherboard type
|
ATX board type
|
|
Dimensions
|
30.4×24.3cm
|
|
BIOS performance
|
Multi-language
|
|
Multi-graphics technology
|
Support AMD CrossFireX hybrid crossfire technology
|
|
Power supply mode
|
11phase
|
|
RAID function
|
Support RAID 0, 1, 10
|
|
Wireless function
|
Wireless: support 802.11 a/b/g/n/acWiFi standard, 2.4GHz-5GHz
|
|
Other features
|
Glare system, pre-installed I/O panel, extended heat sink, PCIE steel armor, frost cooling base, M.2 cooling frost armor, patented blade blade, ball bearing fan, zero-motion space intelligent start-stop technology, DDR4 memory Acceleration engine, core
acceleration engine |
