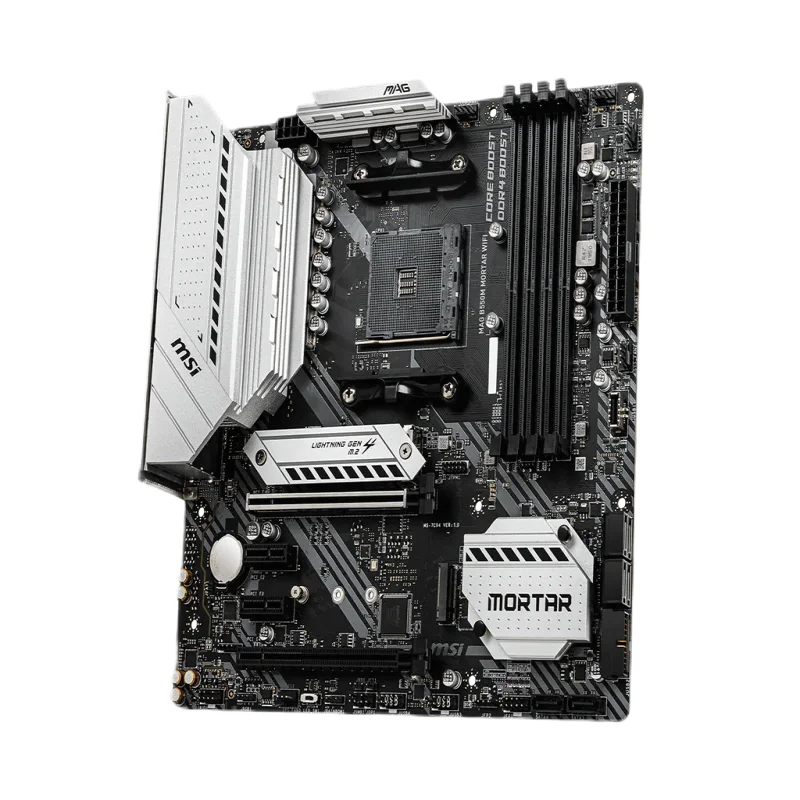

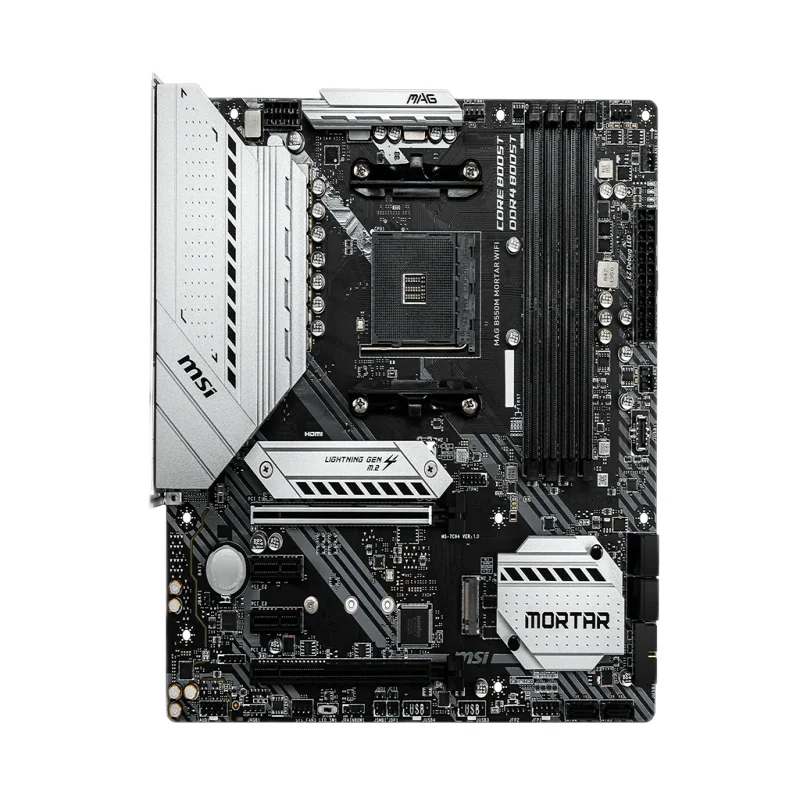

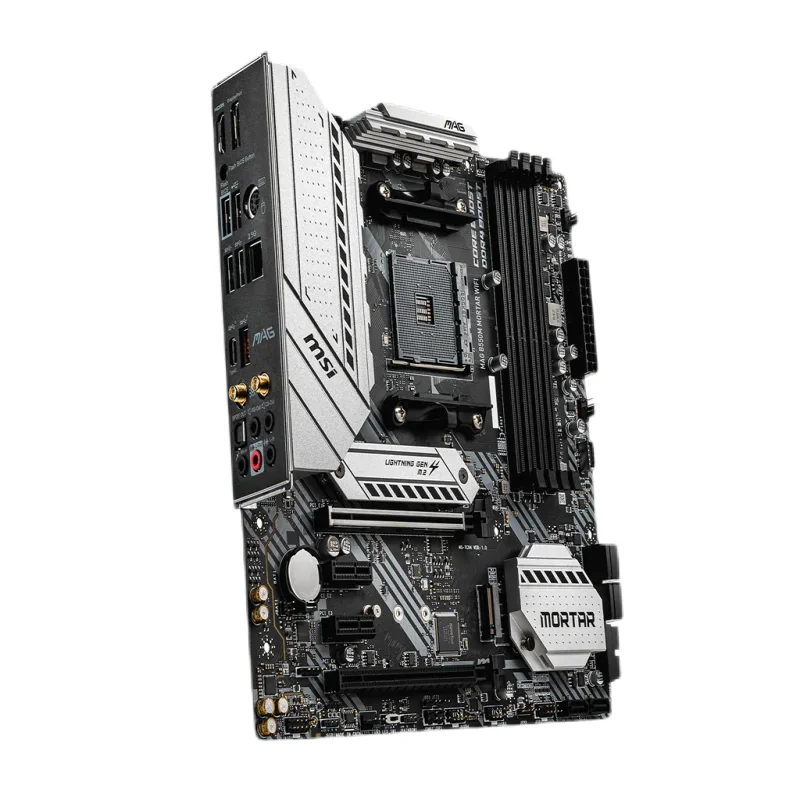

motherboard with wifi
motherboard with wifi
Regular price
$378.00 USD
Regular price
$0.00 USD
Sale price
$378.00 USD
Unit price
per
Couldn't load pickup availability
Product Description
|
Integrated chip
|
Sound card/network card
|
|
Main chipset
|
AMD B550
|
|
Chipset description
|
Using AMD B550 chipset
|
|
Display chip
|
CPU built-in display chip (requires CPU support)
|
|
Audio chip
|
Integrated Realtek ALC1200 7.1 channel audio chip
|
|
Network card chip
|
Onboard Realtek RTL8125B network card
|
|
CPU type
|
Third generation AMD Ryzen
|
|
CPU socket
|
Socket AM4
|
|
Memory type
|
4×DDR4 DIMM
|
|
Maximum memory capacity
|
128GB
|
|
Memory description
|
Support dual channel DDR4 1866/2133/2400/2667/2800/2933/3000/3066
/3200/3466/3600/3733/3866/4000/4133/4266/4400+MHz memory
|
|
PCI-E standard
|
PCI-E 4.0
|
|
PCI-E slot
|
2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
|
|
Storage interface
|
2×M.2 interface, 6×SATA III interface
|
|
USB interface
|
Based on chipset: 3×USB3.2 Gen1 interface (2×Type-A, 1×Type-C), 6×USB2.0 interface
Based on CPU: 2×USB3.2 Gen2 interface(1×Type-A, 1×Type-C), 2×USB3.2 Gen1 interface
|
|
Video interface
|
1×HDMI interface, 1×Display Port interface
|
|
Power connector
|
One 8-pin, one 24-pin power connector
|
|

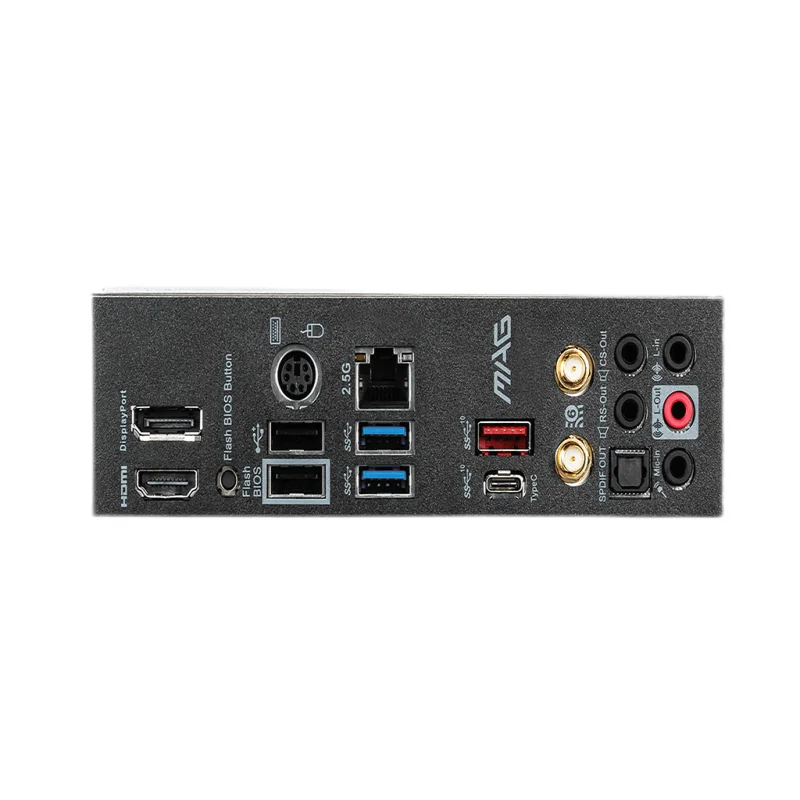

Other interfaces
|
1×PS/2 keyboard and mouse universal interface, 1×RJ45 network interface, 5×audio interface
|
|
Motherboard type
|
Micro ATX type
|
|
Dimensions
|
24.4×24.4cm
|
|
Multi-graphics technology
|
Supports AMD 2-Way CrossFire technology
|
|
Overclocking function
|
Support
|
|
RAID function
|
Support RAID 0, 1, 10
|
|
Wireless function
|
Wireless: support 802.11 a/b/g/n/ac/axWiFi standard
|
|
Operating system
|
Windows10 64-bit
|
