| Motherboard chip |
| Integrated chip |
Sound card / network card |
| Main chipset |
AMD B450 |
| Chipset description |
Using AMD B450 chipset |
| Display chip |
CPU built-in display chip (requires CPU support) |
| Audio chip |
Integrated ROG SupremeFX S1220A 8-channel audio chip |
| Network card chip |
Onboard Intel I211-AT Gigabit LAN |
| Processor specifications |
| CPU type |
2nd / 1st generation AMD Ryzen / Ryzen with Radeon Vega Graphics |
| CPU socket |
Socket AM4 |
| Memory specifications |
| Memory type |
2 × DDR4 DIMM |
| Maximum memory capacity |
32GB |
| Memory description |
Support dual channel DDR4 3600 (OC) / 3466 (OC) / 3400 (OC) / 3200 (OC) / 3000 (OC) / 2933 (OC) / 2800 (OC) / 2666/2400 / 2133MHz |
| Storage expansion |
| PCI-E standard |
PCI-E 3.0 |
| PCI-E slot |
1 × PCI-E X16 graphics slot |
| Storage interface |
2 × M.2 interface, 4 × SATA III interface |

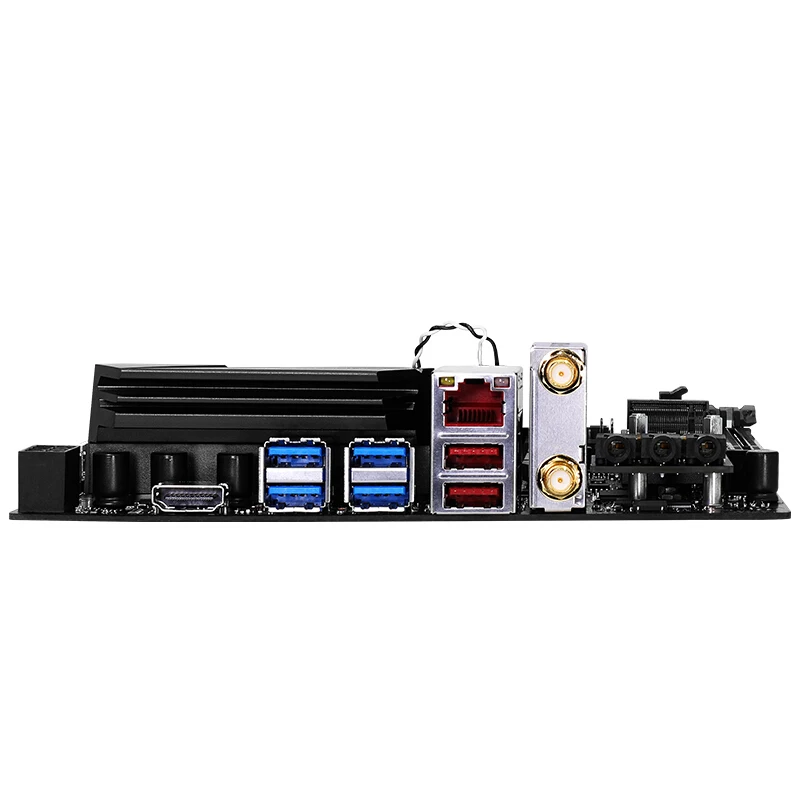

| I / O interface |
| USB interface |
2 × USB3.1 Gen2 interface, 6 × USB3.1 Gen1 interface (2 built-in +4 backplane), 2 × USB2.0 interface (2 built-in) |
| Video interface |
1 × HDMI interface |
| Power interface |
One 8-pin, one 24-pin power connector |
| Other interfaces |
1 × RJ45 network interface, 3 × audio interface |
| Software management |
| BIOS performance |
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log
F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Secure Erase, User Profile, F4 AURA ON / OFF, F9 Search |
| Other parameters |
| RAID function |
Supports RAID 0, 1, 10 |
| wireless function |
Wireless: Support 802.11 a / b / g / n / acWiFi standard, support 2.4 / 5GHz wireless dual frequency |
| Other features |
Support HIFI |
| Listing date |
June 2018 |

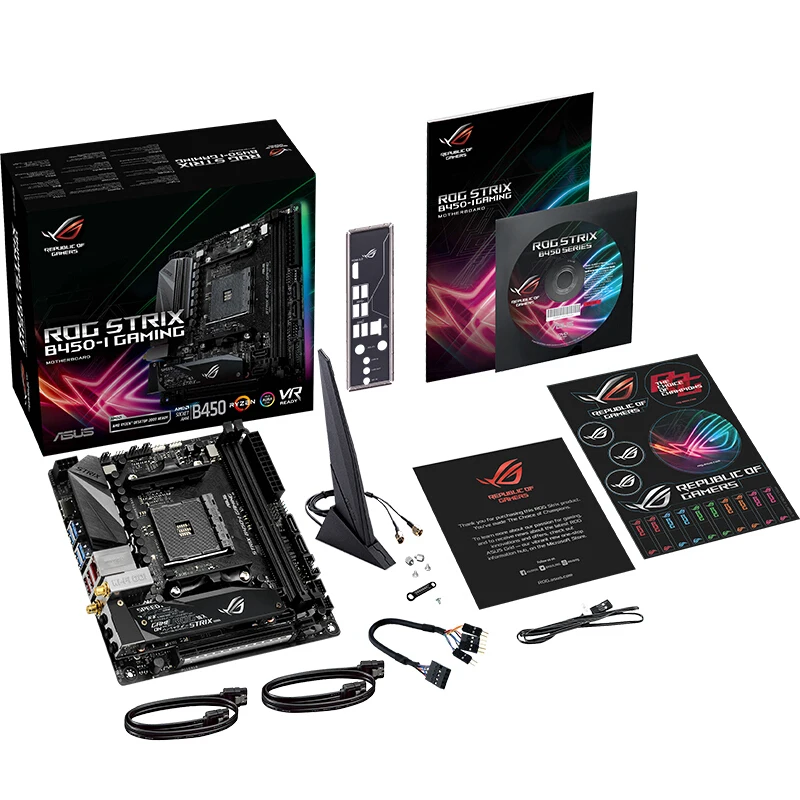

| Motherboard accessories |
| packing list |
Motherboard x1
User Manual x1
I / O Bezel x1
SATA 6.0Gb / s Data Cable x2
M.2 Screw Pack x1
Supporting DVD x1
SLI HB BRIDGE (2-WAY-M) x1
Q-connector (s) (1in1) x1 |
|
