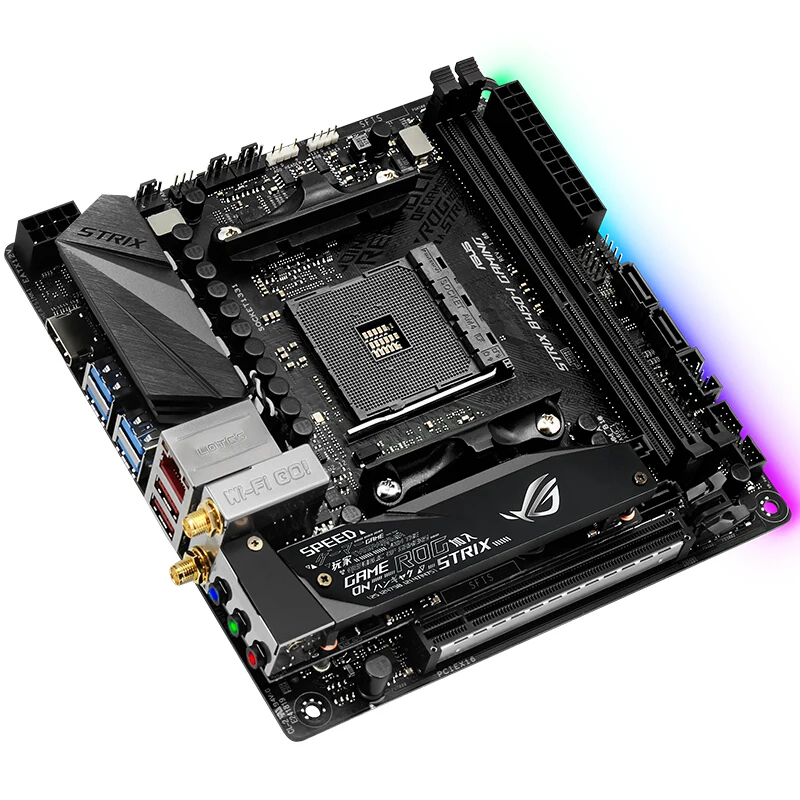

ASUS gamer mainboard

ASUS gamer mainboard

Regular price $370.00 USD
Regular price $0.00 USD Sale price $370.00 USD
Sale Sold out
Tax included.
Model Number
Product Description
Integrated chip
Sound card/network card
Main chipset
AMD B450
Chipset description
Using AMD B450 chipset
Display chip
CPU built-in display chip (requires CPU support)
Audio chip
Integrated ROG SupremeFX S1220A 8-channel audio chip
Network card chip
Onboard Intel I211-AT Gigabit LAN
CPU type
The second generation/first generation AMD Ryzen/Ryzen with Radeon Vega Graphics
CPU socket
Socket AM4
Memory type
2×DDR4 DIMM
Maximum memory capacity
32GB
Memory description
Support dual-channel DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)
/2933(O.C.)/2800(O.C.)/2666/2400/2133MHz memory
PCI-E standard
PCI-E 3.0
PCI-E slot
1×PCI-E X16 graphics slot
Storage interface
2×M.2 interface, 4×SATA III interface
USB interface
2×USB3.1 Gen2 interface, 6×USB3.1 Gen1 interface (2 built-in +4 backplane), 2×USB2.0 interface (2 built-in)
Video interface
1×HDMI interface
Power connector
One 8-pin, one 24-pin power connector
Other interfaces
1×RJ45 network interface, 3×audio interface
Motherboard type
Mini-ITX board type
Dimensions
17.0×17.0cm
BIOS performance
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log
F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Secure Erase, User Profile, F4 AURA ON/OFF, F9
Search
RAID function
Support RAID 0, 1, 10
Wireless function
Wireless: Support 802.11 a/b/g/n/acWiFi standard, support 2.4/5GHz wireless dual frequency
Other features
Support HIFI
Specification
View full details
