gaming motherboard
gaming motherboard
Regular price
$1,315.00 USD
Regular price
$0.00 USD
Sale price
$1,315.00 USD
Unit price
per
Couldn't load pickup availability
Product Description
|
Integrated chip
|
Sound card/network card
|
|
Main chipset
|
AMD X570
|
|
Chipset description
|
Using AMD X570 chipset
|
|
Display chip
|
CPU built-in display chip (requires CPU support)
|
|
Audio chip
|
Integrated ROG SupremeFX 8-channel audio chip
|
|
Network card chip
|
Onboard I211AT Aquantia AQC111C 5G network card
|
|
CPU type
|
3rd and 2nd generation AMD Ryzen/2nd and 1st generation AMD Ryzen with Radeon Vega Graphics processor
|
|
CPU socket
|
Socket AM4
|
|
Memory type
|
4×DDR4 DIMM
|
|
Maximum memory capacity
|
128GB
|
|
PCI-E standard
|
PCI-E 4.0
|
|
PCI-E slot
|
3rd generation AMD Ryzen processor,2×PCIe 4.0 x16 (x16 or dual slot x8),
2nd Generation AMD Ryzen Processor, 2×PCIe 3.0 x16 (x16 or dual slot x8),
2nd and 1st generation AMD Ryzen with RadeonVega Graphics processor,
1×PCIe 3.0 x16 (x8 mode),AMD X570 chip,1×PCIe 4.0 x16 (maximum x4 mode),
1×PCIe 4.0 x1 |
|
Storage interface
|
3rd generation AMD Ryzen processor: 1×M.2 socket 3, support M Key, support 2242/2260/2280 (PCIE 4.0 x4 and SATA mode) storage devices
2nd generation AMD Ryzen processor: 1×M.2 socket 3
AMD X570 chip: 1×M.2 ocket 3 8×SATA III interface
|
|

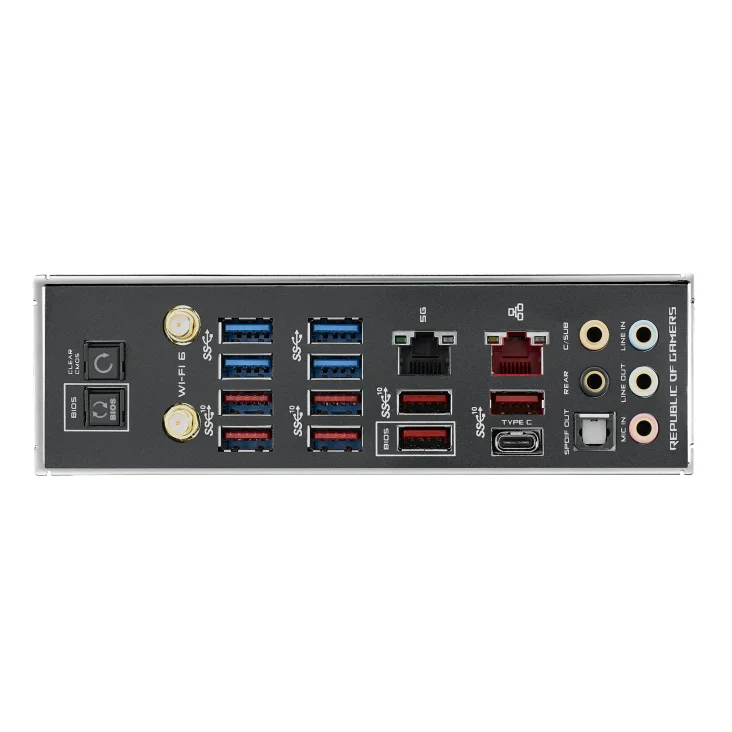

USB interface
|
3rd and 2nd generation AMD Ryzen/2nd and 1st generation AMD Ryzen with Radeon Vega Graphics processor: 4×USB3.2 Ge2 interface
(4@after, red, Type-A) AMD X570 chipset: 4×USB 2.0 interface
AMD X570 chipset: 1×USB3.2 Gen2 interface (front)
AMD X570 chipset: 4×USB3.2 Gen2 interface (3@after, red, Type-A, 1xType-C)
AMD X570 chipset: 8×USB3.2 Gen1 interface (4@ after, blue, 4@ before)
|
|
Power connector
|
One 4-pin, one 8-pin, and one 24-pin power connector
|
|
Other interfaces
|
2×RJ45 network interface
|
|
Motherboard type
|
E-ATX type
|
|
Dimensions
|
30.5×24.4cm
|
|
BIOS performance
|
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
|
|
Multi-graphics technology
|
3rd and 2nd generation AMD Ryzen processors: support NVIDIA 3-way SLI technology, support AMD 3-way CrossFireX technology
The 2nd and 1st generation AMD Ryzen is equipped with RadeonVega Graphics processor: supports AMD 2-way CrossFireX technology
|
|
Wireless function
|
Wireless: support 802.11 a/b/g/n/acWiFi standard
|
|
Other parameters
|
Metal backplane, ROG armor, 1.3-inch LiveDash OLED display
|
|
Heat dissipation performance
|
CrossChill EK III mixed water cooling heat dissipation
|
