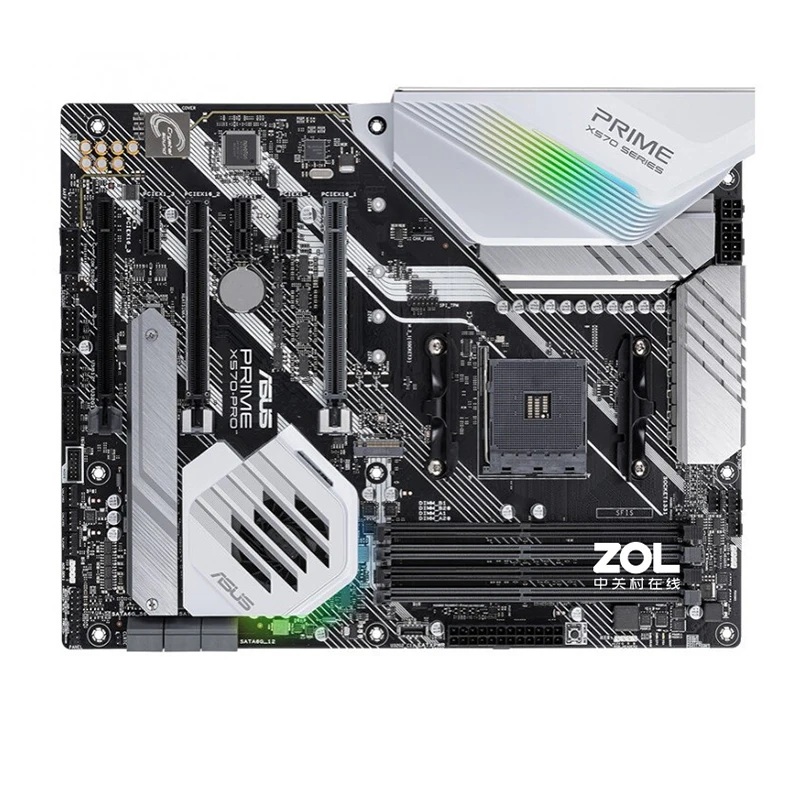

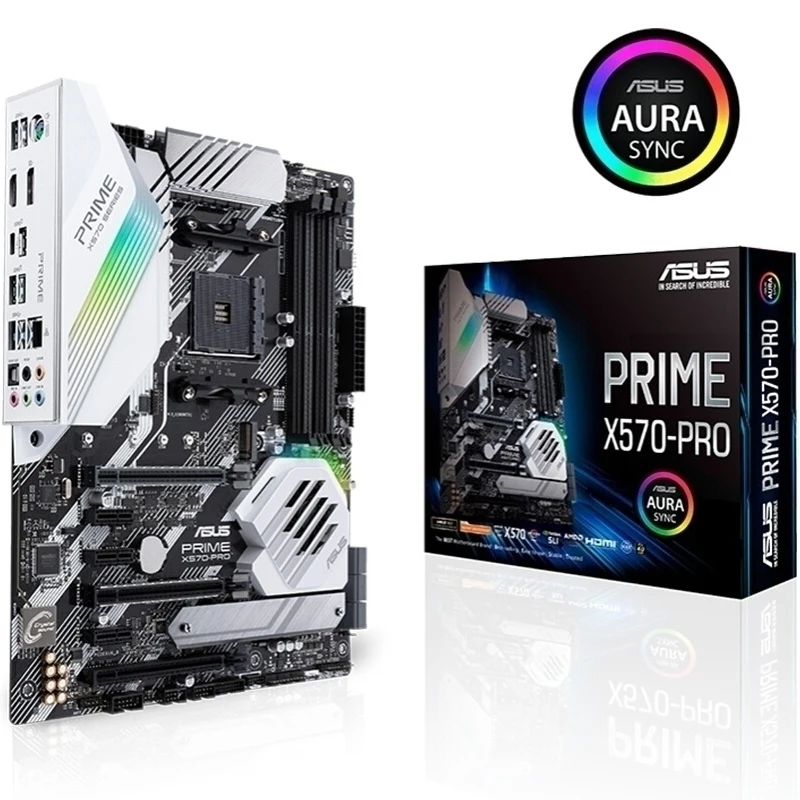

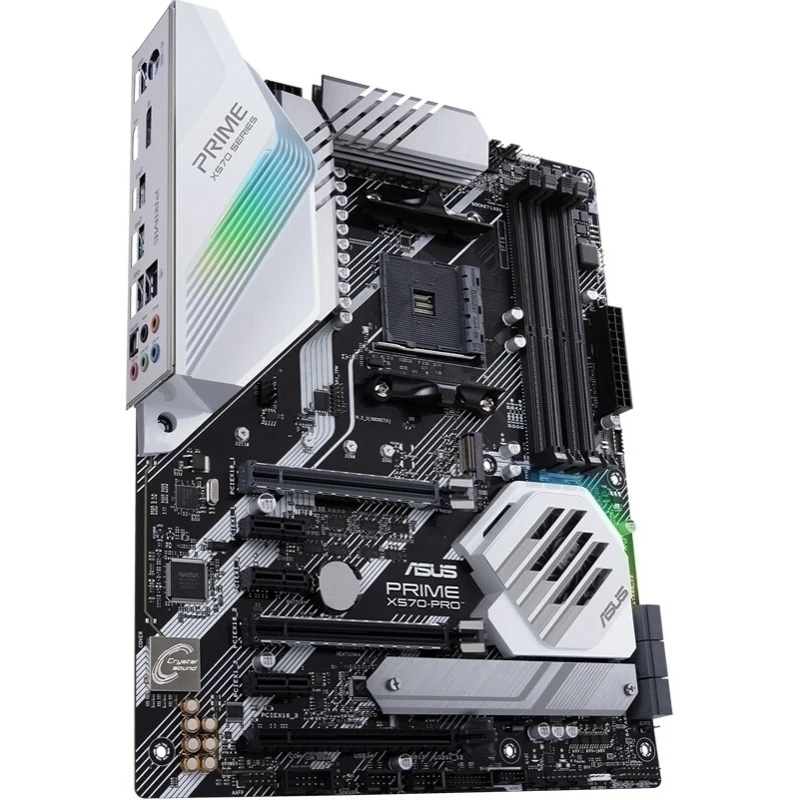

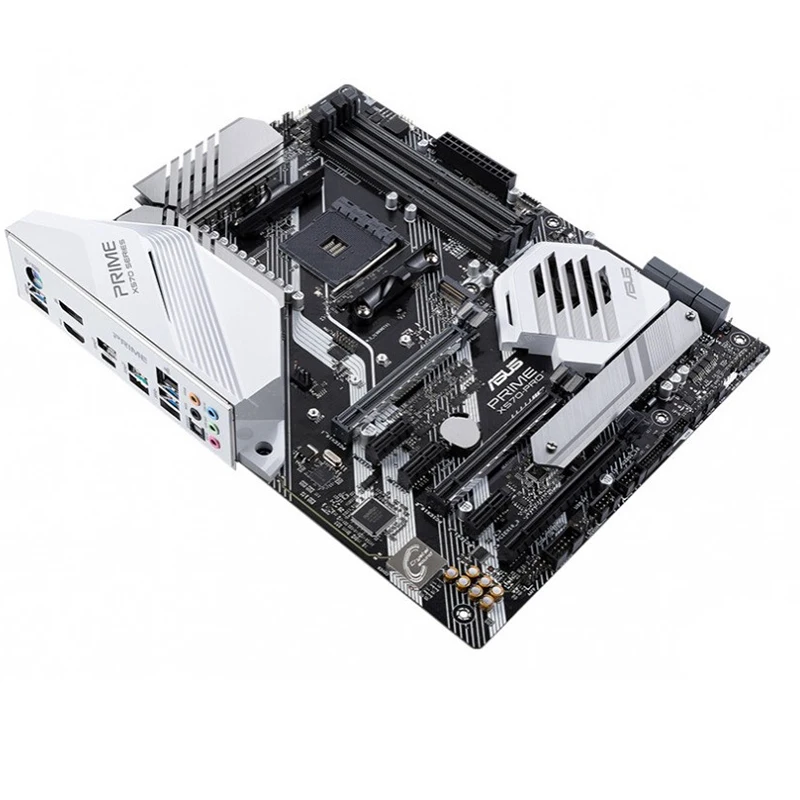

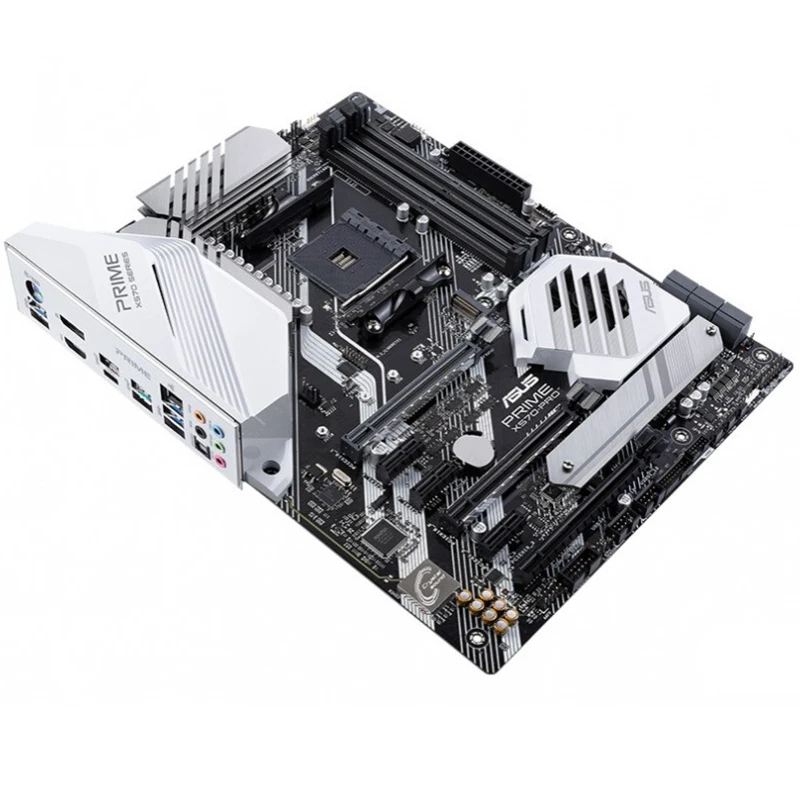

gaming motherboard support amd

Integrated chip

Sound card/network card

Main chipset

AMD X570

Chipset description

Using AMD X570 chipset

Display chip

CPU built-in display chip (requires CPU support)

Audio chip

Integrated Realtek S1220A audio chip

Network card chip

Onboard Intel Gigabit network card

CPU socket

Socket AM4

Memory type

4×DDR4 DIMM

Maximum memory capacity

128GB

PCI-E standard

PCI-E 4.0

PCI-E slot

2×PCI-E X16 graphics slot, 3×PCI-E X1 slot

Storage interface

3×M.2 interface, 6×SATA III interface

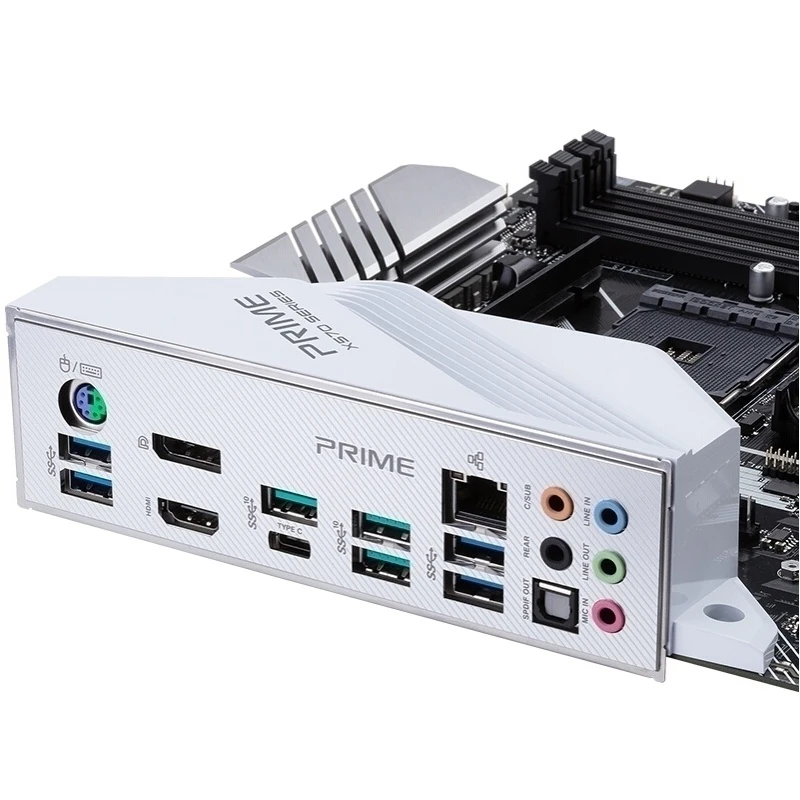

USB interface

6×USB3.2 Gen1 interface, 4×USB3.2 Gen2 interface, USB3.2 Gen2 Type-C interface

Video interface

1×HDMI interface, 1×Display Port interface

Power connector

One 8-pin, one 24-pin power connector

Other interfaces

1×RJ45 network interface, 1×PS/2 keyboard and mouse universal interface, 1×RGB pin_1, 1×RGB pin_2, 5×audio interface

Multi-graphics technology

Supports AMD CrossFireX hybrid crossfire technology

Other features

AURA SYNC Shenguang synchronization
